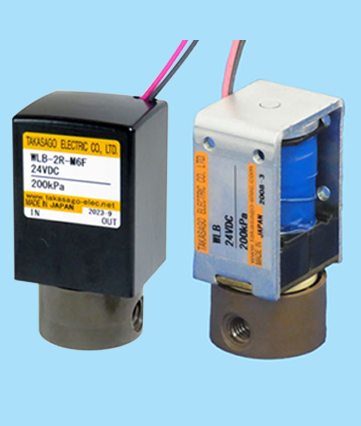

Diaphragm Isolation Valves - WLB Series
CHARACTERISTICS
The WLB series is a latching solenoid valve. Electricity is consumed when energization is only required just an instant opening or closing, so heat generation is very limited. These WLB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM.
The WLB series is a latching solenoid valve:
Please feel free to contact us for more details about these Diaphragm Valves - the WLB series.
SPECIFICATIONS
| Method | Latching Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 2.0 mm |
| Type | 2-way or 3-way |
| IN Port Pressure |
-90～200 kPa
|
| OUT Port Pressure (NC) |
0～100 kPa
|
| OUT Port Pressure (NC)(NO) |
0～50 kPa
|
| Port Connection | M6, 1/4-28UNF, or Hose Barb |
| Body Material | PTFE, PEEK, or PPS |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 8.0 W |
| Operating Duration | Intermittent ED = 10 % |
| Outer Dimensions | 25.0 x 26.0 x 55.9 mm |
| Fluid Temperature Range | 5～50℃ |
| Ambient Temperature Range | 5～50℃ |
Note: Details such as specifications, etc. may be changed without notification.
