Syringe Pump Controller [SXPC-01] for SBP/SCP Pumps

$1,080.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS


  1. This controller can be used by both the SBP and SCP series.
  2. By connecting the controller to a PC via USB, the operating speed and volume of the pump can be stored in memory, and the pump can be controlled manually or from a PC.

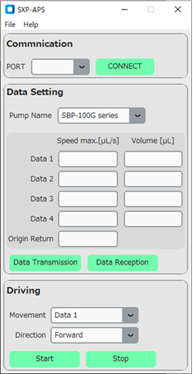

  3. To use the SXP-APS software for your computer, please download it below.
    4. Software SXP-APS
    Manual Controller SXPC
    Manual Software SXP-APS

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SXPC-01
Outer Dimensions W125×D85×H26.8 mm
Method Controller for Syringe Pump
Power Consumption 6 W
Weight Approximately 150 g
Notes
Input Voltage 24 VDC
Compatible pumps SBP-100G Series 1 Unit or
SCP-1000G Series 1 Unit *1
Compatible OS Windows® 10*2
Accessories AC adapter

Note: Details including specifications, etc. may change without notification.



*1: Compatible Models     Operating speed           Travel Length



SBP-100G Series             0.01 ～ 20.00 μL/s        0.01 ～ 120.00 μL

SCP-1000G Series           0.10 ～ 150.00 μL/s      0.10 ～ 1200.00 μL



*2: The official name of Windows® is Microsoft® Windows® Operating System. Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
