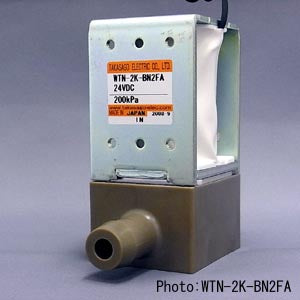

Diaphragm Valve WTN Series [3way / Orifice: 4.0mm / PEEK body]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a solenoid diaphragm valve with orifice 4 - 6 mm.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTN-3-B1/4KF
Outer Dimensions 42 x 39 x 86.5 mm
Method Solenoid
Type 3way
Port Connection Rc1/4, 1/4-18NPT, Rc1/8, 1/8-27NPT
Orifice(mm) 4
Rated Voltage 12VDC, 24VDC
Power Consumption 7.5 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM, Perfluoroelastomer
Other Wetted Materials PTFE^PCTFE
