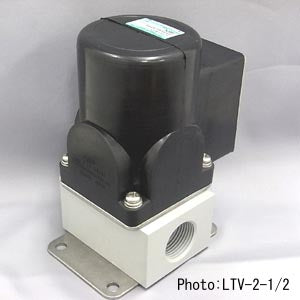

Diaphragm Valve LTV Series [2way-NC / Orifice: 16.0mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a 2way solenoid diaphragm valve with large orifice size.

Please contact us for more details of this solenoid diaphragm valve, LTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions 146 x 95 x 167 mm
Method Solenoid
Type 2way-NC
Port Connection Rc1, Rc1/2, Rc3/4
Orifice(mm) 16
IN Port Pressure -80 ` 100 kPa'
OUT Port Pressure (NC) -80 ` 50 kPa'
Rated Voltage 24VDC, 100VAC, 200VAC
Power Consumption 25 W
Operating Duration Continuous
Body Material PTFE, HPVC
Seal Material PTFE
